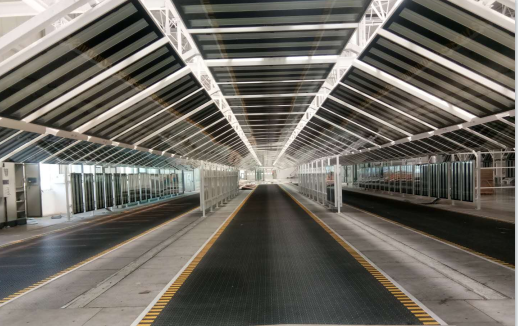

Equipment Description
1). Technical parameters of accompanying plastic plate belt:
·Shaft to shaft transmission distance: L1=42m/L2=36m/L3=48m
·Station spacing: 6m
·Load capacity: 3 persons/station
·Mesh belt width: 2625 mmW
·Friction coefficient: average friction coefficient 0.3
·Module mesh belt: M5023PP+AS/PA (pitch 50.8mm)
·Mesh belt pin: PA
·Support plate material: UHMWPE+EC
·Maximum speed: 6-8m/min
·Main motor power (80% transmission efficiency): 4kW
·Driving shaft torque: 2410Nm
·Driven shaft tension motor (80% transmission efficiency): 2.2 kW0
·Driven shaft torque: 1200Nm
·Number of drive wheel gears: 21 teeth PA6
·Number of driven wheel gears: 21 teeth PA6
2). Description of main conveying equipment:
Single-path plastic module mesh conveyor is mainly composed of drive unit, transmission shaft assembly, tension shaft assembly, transmission shaft bracket, tension shaft bracket, intermediate support steel structure, head pit steel structure, tail pit steel structure, and plastic module mesh belt.
Module mesh belt
Habasit LINK
M5023 2” anti-slip mesh belt
l Product description
l Opening ration 0%
l High-hardness
l Closed-cell design
l Safety, anti-slipping, suitable for personnel transportation
l Pin diameter 7mm (0.27inch)
l Standard material with anti-static function
l Conductive material for optional
l Irregular combination is available with edge distance 19mm (0.75inch)
Accessories
l Bottom hook plate
